Visual Studio 2010: Are you being cordial to Report Viewer

imageIf you are using Visual Studio 2010 and a Windows Forms Application which uses the Report Viewer control, then might have probably been scratching your head when you suddenly lost the capability of using any of the drill-through options in your reports.

The problem happens only after you install Visual Studio Service Pack 1! So, what is the solution… Install an update released for Visual Studio 2010 Service Pack 1 (KB2549864).

If you are using only the Microsoft Report Viewer 2010 SP1 Redistributable Package, then you need to install the file named “ReportViewer.exe”. If you use Microsoft Visual Studio 2010 Service Pack 1, install the file that is named “VS10SP1-KB2549864-x86.exe.” I saw yet another question on this being raised on this again this week… So I thought that a quick blog post on this would be definitely worth the effort!

Reference: Update fixes several Report Viewer issues after you install Visual Studio 2010 Service Pack 1

Brian Hartman’s Blog

Addition: 10/22/2014: A number of people have reported that the above link does not work anymore for downloading the hotfix files. You will need to download the hotfix files from the link mentioned below:

Update for Microsoft Visual Studio 2010 Service Pack 1 Report Viewer (KB2549864)

Tools Tips and Tricks #4: RML Utilities

It is time again for your friendly neighborhood (or virtual neighborhood) SQL CSS person to provide you with the next set of tips for the various tools that he uses in his day-to-day work. I probably use this tool “RML Utilities” or the database created by this at least once a day and sometimes even more. Not kidding!!

This tool has become synonymous with Profiler Trace analysis collected from customer environments in CSS. Majority of you might be familiar with the tool “SQL Nexus” which call RML utilities in the background to load the collected Profiler Traces into a SQL Server database. This calls an executable, ReadTrace.exe. In this post, I will talk about a few conditions when you should be calling ReadTrace.exe instead of invoking it from SQL Nexus.


As you can see above that SQL Nexus provides you the option of breaking down the activity of each SPID into individual .trc files but they can only be directed to the %TEMP%\RML folder on your machine. The previous server that I had didn’t have sufficient disk space to hold over 100GB of data in the TEMP directory. Yes, we do analyze data which runs into a few hundred GBs at times!

Now you have two options, change the %TEMP% environment path on your machine to a different drive or use the ReadTrace.exe to generate the .trc files in the required path.

Another option that cannot be controlled from SQL Nexus is the ability to add SPID, Hostname and Application filters while importing the data.

Some of the defaults for ReadTrace are shown below which are required for any profiler trace import are:

-o Output files to be generated in the current directory
-S Connect to default SQL Server instance on the machine
-d Load profiler data into PerfAnalysis database
-E Use windows authentication while connection.

Here are a few scenarios where I use ReadTrace.exe directly….

Analyzing a deadlock scenario where I know the Session IDs involved

Sometimes the deadlock graph is not sufficient to figure out why a lock is still held by that session and why that session acquired the lock on the object in the first place. At that point, you need to track down the sequence of statements executed by the session. In this case, I will use the following command to import the data.

readtrace -S. -E -ddbRMLUtilDemo
-I"D:\RML\RMLUtil_demo.trc" -A"!SQLCMD" -s53 -s55 -MF -o"D:\RML\output" -f

The above command will import the trace files into a database dbRMLUtilDemo on the default instance on the machine with a SPID filter of 53 and 55 and exclude events generated with the application name SQLCMD. Additionally, individual .trc files will be generated containing the activity of SPIDs 53 and 55.

Generating .RML files to be used by OStress

Use the –o parameter to change the output path and use the –s, –A and –H filters to apply the necessary SPID, application name and host name filters respectively. An example to apply filters for SPIDs 51, 52, 53, exclude events generated by application name PSSDIAG or hostname MyLaptop.

readtrace -S. -E -ddbRMLUtilDemo
-I"D:\RML\RMLUtil_demo.trc" -A"!SQLCMD" –s51 –s52 -s53 -o"D:\RML\output" –H"!MyLaptop" –A"!PSSDIAG"

The command line window and the ReadTrace.log file available in the output directory will confirm if the filters were applied correctly or not. Below is a screen shot of the command line window showing that the filters were applied correctly:


Handling MARS sessions

ReadTrace has limited processing ability for handling sessions using MARS (Multiple Active Result Sets). You have to use –f and –T35 to import data from trace files which contains MARS sessions. ReadTrace uses the formula ((Session Id * 10 ) + BatchId) so that a MARS sessions appears as a separate session. Eg. If you see Session ID 1620, 1621 and so on in the ReadTrace/SQLNexus database but cannot find such a session in the DMV outputs captured during that time, then the activity corresponds to Session ID 162 which was using MARS.

Note: And remember to always use a Server Side trace whenever possible to capture a profiler trace output to a local disk.

The PDF help files for RML Utilities are located at <system drive>:\Program Files\Microsoft Corporation\RMLUtils\Help folder by default on a machine where RML Utilities is installed in case you wanted more information on the above.

RML Utilities Download

Keep following the tag “Tools tips and Tricks” for more posts on the various tools that we use. That’s it for today!

SQL Nexus: What StartTimeInterval?

When I get asked the same question more than 3 times in less than 48 hours, I guess it’s time to create some documentation around the error.

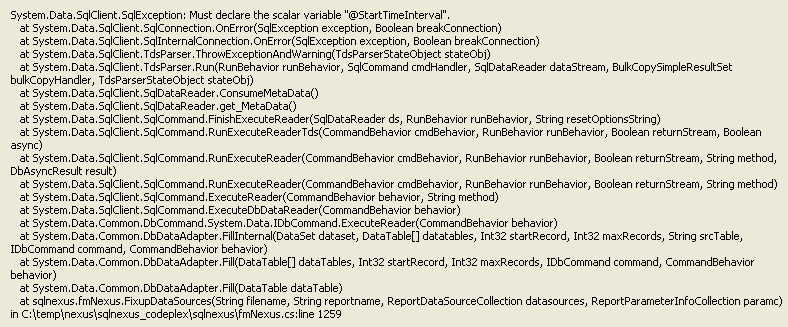

The issue is when you click on the UniqueStatements link in the ReadTrace_Main report in SQL Nexus, you get the following exception:


If you collect a profiler trace, you will find that the error is raised while executing the following command:

exec ReadTrace.spReporter_StmtTopN @StartTimeInterval, @EndTimeInterval, @TopN, @Filter1, @Filter2, @Filter3, @Filter4, @Filter1Name, @Filter2Name, @Filter3Name, @Filter4Name

The error message would be:

Error: 137, Severity: 15, State: 2
Must declare the scalar variable "@StartTimeInterval".

The above error will be reported in the exception message that is raised in SQL Nexus as well. The issue is not with SQL Nexus but with the RML Utilities report. You can get this issue under the following condition:

1. There are no entries in the readtrace.tblStatements and readtrace.tblTimeIntervals tables.
2. Or if you are using an older version of ReadTrace (RML Utilities)

I was able to reproduce the issue on ReadTrace.exe build of 9.01.0109.

The issue stems from the fact that when you click on the UniqueStatements report link and no parameters are specified, thimagee Start Time and the End Time to be analyzed is picked up from the tblTimeIntervals. I was able to reproduce the issue on the same SQL Nexus database using one version of ReadTrace reports and not with the other. You can send an email to and request the latest build for RML Utilities with the ReadTrace and SQL Nexus log file as attachments. The logs can be retrieved by clicking on the hyperlinks in SQL Nexus shown in the picture on the right. Tags: ,,

How to use Reporter to analyze SQL Profiler traces

I had a question on the SQL Nexus discussion forum regarding the following error while using Reporter:

When I run Reporter, with the default settings (i.e. DB=PerfAnalysis), I get an error :
Server: (local) Error: 4060 Severity: 11 State: 1 Line: 65536 Source: .Net SqlClient Data Provider
Cannot open database "PerfAnalysis" requested by the login. The login failed.

When you launch Reporter which is part of the RML Utilities installation, the PerfAnalysis database is the default database that the Report will attempt to connect to. See illustration below:


You will need to change the baseline database to the database into which you imported the profiler traces using SQL Nexus. In my case, I had imported the SQL Profiler Traces captured into a database called nexus_blocking.

I shall cover a walkthrough on importing data into SQL Nexus sometime later.

Unable to import a trace using SQL Nexus

While trying to import a profiler trace using SQL Nexus, you might get the following error in the SQL Nexus log file:

"The system cannot find the file specified (System)"
Program Location:
   at System.Diagnostics.Process.StartWithCreateProcess(ProcessStartInfo startInfo)
   at System.Diagnostics.Process.Start()
   at System.Diagnostics.Process.Start(ProcessStartInfo startInfo)
   at ReadTrace.ReadTraceNexusImporter.DoImport() in C:\jacklidocs3\cprsrc\main\src\sqlnexus_pass\ReadTraceNexusImporter\ReadTraceNexusImporter.cs:line 364
   at sqlnexus.fmImport.DoImport() in C:\jacklidocs3\cprsrc\main\src\sqlnexus_pass\sqlnexus\fmImport.cs:line 557

The issue could be one of the two reasons:

  1. Your RML Utilities version is older than the current version – Install the latest version of RML Utilities.
  2. Your RML utilities location is not registered with SQL Nexus – This can be corrected by navigating to  C:\Program Files\Microsoft Corporation\RMLUtils from Command Prompt and execute the following: orca.exe /R
