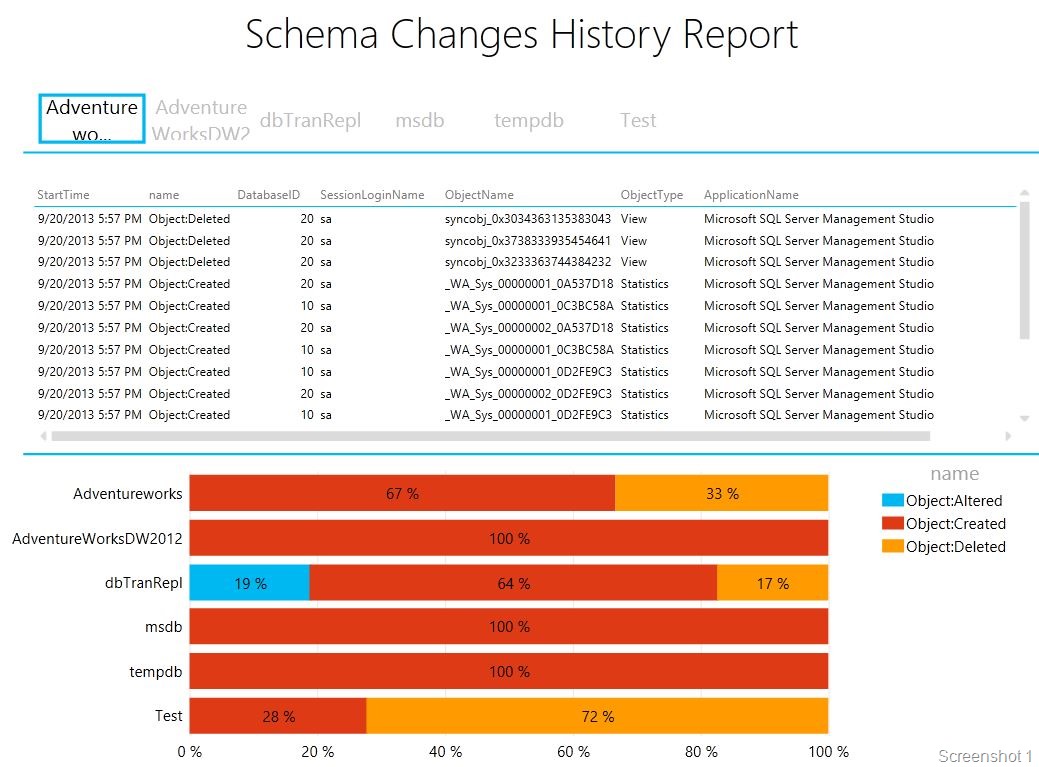

WOOT: Schema Changes History Report on Power View

The last post in this series talked about using Power View to analyze the data stored in the SQL Server’s default trace. I decided to take this a step further by creating the Schema Changes History report with the help of the data that I retrieved from the Default Traces. The advantage of a report created in Power View is that the interactivity which is missing in the standard report is available.

The way I created this report was to filter the data in the Power Pivot table using EventClass ID 46, 47 and 164 for only looking at the create, drop and alter commands which the default trace tracks. After that I created a table with a tile on the Database Name and a 100% Stacked Bar Chart to show the activity at a database level.

I also had to create linked tables for getting the Object Type and the Event Class Name that you see in the table below.

I will provide a final version of the Excel sheet once I have completed the other dashboards and sanitized the information available in the Power Pivot table.

SchemaChangesHistory

Previous Post in the Series:

Default Trace Dashboard
https://troubleshootingsql.com/2013/09/26/woot-default-trace-and-power-view/

WOOT: Default Trace and Power View

I have been working on building visualizations for various kinds of analysis that I perform for my customers. One such useful visualization was the use of Power View for analyzing the data available in the SQL Server Default Trace. The query below lets you retrieve all the information in the default traces. This same query is used to populate the Power Pivot table in the Excel file.


declare @enable int

-- Check to find out if Default Server Side traces are running
select top 1 @enable = convert(int,value_in_use) from sys.configurations where name = 'default trace enabled'

if @enable = 1 --default trace is enabled
begin

declare @d1 datetime;
declare @diff int;
declare @curr_tracefilename varchar(500);
declare @base_tracefilename varchar(500);
declare @indx int ;

select @curr_tracefilename = path from sys.traces where is_default = 1 ;

set @curr_tracefilename = reverse(@curr_tracefilename)
select @indx = PATINDEX('%\%', @curr_tracefilename)
set @curr_tracefilename = reverse(@curr_tracefilename)
set @base_tracefilename = LEFT( @curr_tracefilename,len(@curr_tracefilename) - @indx) + '\log.trc';

select EventCat.name as Category, EventID.name as EventName, Events.*
from ::fn_trace_gettable( @base_tracefilename, default ) Events
inner join sys.trace_events EventID
on Events.EventClass = EventID.trace_event_id
inner join sys.trace_categories EventCat
on EventID.category_id = EventCat.category_id

end

Once I have all the trace data available in my Power Pivot table, I created calculated columns for Day, Hour and Minute. Now that I have all the data readily available for me, I went about creating the main dashboard which provides a view of all the events that occurred along with a time line view. All this took me less than 5 minutes after I had finished writing the query! Pretty quick. Now I have an interactive report that I can use for performing various kinds of analysis.

The screenshot below will show that there was only one event raised for the Server event category and the actual time of occurrence is shown in the line graph. A simple mouse over on the point will give you the exact details. Now isn’t that a simple way to track down events! Smile


I will provide a final version of the Excel sheet once I have completed the other dashboards and sanitized the information available in the Power Pivot table.

Tools Tips and Tricks #4: RML Utilities

It is time again for your friendly neighborhood (or virtual neighborhood) SQL CSS person to provide you with the next set of tips for the various tools that he uses in his day-to-day work. I probably use this tool “RML Utilities” or the database created by this at least once a day and sometimes even more. Not kidding!!

This tool has become synonymous with Profiler Trace analysis collected from customer environments in CSS. Majority of you might be familiar with the tool “SQL Nexus” which call RML utilities in the background to load the collected Profiler Traces into a SQL Server database. This calls an executable, ReadTrace.exe. In this post, I will talk about a few conditions when you should be calling ReadTrace.exe instead of invoking it from SQL Nexus.

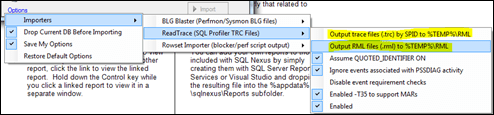

As you can see above that SQL Nexus provides you the option of breaking down the activity of each SPID into individual .trc files but they can only be directed to the %TEMP%\RML folder on your machine. The previous server that I had didn’t have sufficient disk space to hold over 100GB of data in the TEMP directory. Yes, we do analyze data which runs into a few hundred GBs at times!

Now you have two options, change the %TEMP% environment path on your machine to a different drive or use the ReadTrace.exe to generate the .trc files in the required path.

Another option that cannot be controlled from SQL Nexus is the ability to add SPID, Hostname and Application filters while importing the data.

Some of the defaults for ReadTrace are shown below which are required for any profiler trace import are:

-o Output files to be generated in the current directory
-S Connect to default SQL Server instance on the machine
-d Load profiler data into PerfAnalysis database
-E Use windows authentication while connection.

Here are a few scenarios where I use ReadTrace.exe directly….

Analyzing a deadlock scenario where I know the Session IDs involved

Sometimes the deadlock graph is not sufficient to figure out why a lock is still held by that session and why that session acquired the lock on the object in the first place. At that point, you need to track down the sequence of statements executed by the session. In this case, I will use the following command to import the data.

readtrace -S. -E -ddbRMLUtilDemo
-I"D:\RML\RMLUtil_demo.trc" -A"!SQLCMD" -s53 -s55 -MF -o"D:\RML\output" -f

The above command will import the trace files into a database dbRMLUtilDemo on the default instance on the machine with a SPID filter of 53 and 55 and exclude events generated with the application name SQLCMD. Additionally, individual .trc files will be generated containing the activity of SPIDs 53 and 55.

Generating .RML files to be used by OStress

Use the –o parameter to change the output path and use the –s, –A and –H filters to apply the necessary SPID, application name and host name filters respectively. An example to apply filters for SPIDs 51, 52, 53, exclude events generated by application name PSSDIAG or hostname MyLaptop.

readtrace -S. -E -ddbRMLUtilDemo
-I"D:\RML\RMLUtil_demo.trc" -A"!SQLCMD" –s51 –s52 -s53 -o"D:\RML\output" –H"!MyLaptop" –A"!PSSDIAG"

The command line window and the ReadTrace.log file available in the output directory will confirm if the filters were applied correctly or not. Below is a screen shot of the command line window showing that the filters were applied correctly:


Handling MARS sessions

ReadTrace has limited processing ability for handling sessions using MARS (Multiple Active Result Sets). You have to use –f and –T35 to import data from trace files which contains MARS sessions. ReadTrace uses the formula ((Session Id * 10 ) + BatchId) so that a MARS sessions appears as a separate session. Eg. If you see Session ID 1620, 1621 and so on in the ReadTrace/SQLNexus database but cannot find such a session in the DMV outputs captured during that time, then the activity corresponds to Session ID 162 which was using MARS.

Note: And remember to always use a Server Side trace whenever possible to capture a profiler trace output to a local disk.

The PDF help files for RML Utilities are located at <system drive>:\Program Files\Microsoft Corporation\RMLUtils\Help folder by default on a machine where RML Utilities is installed in case you wanted more information on the above.

RML Utilities Download
http://blogs.msdn.com/b/psssql/archive/2008/11/12/cumulative-update-1-to-the-rml-utilities-for-microsoft-sql-server-released.aspx

Keep following the tag “Tools tips and Tricks” for more posts on the various tools that we use. That’s it for today!

Two starts, one recompile and a confusing place

I used to be regular viewer of the TV Series “Two Guys, A Girl and A Pizza Place” co-starring Ryan Reynolds. The blog post title is a play on that name. In the past week, I have heard about this phenomenon of “one ghost Stmt: Starting” event more than thrice which is what triggered this blog post.

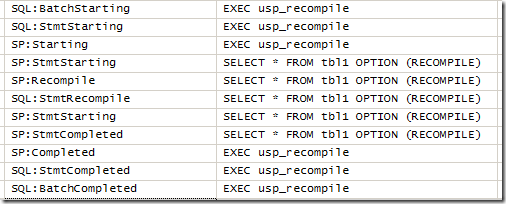

When you are analyzing such a trace file using RML Utilities, you will find an entry in the tblStatements table showing a Statement for a particular Batch Sequence (Column name: BatchSeq) which has a Start Time but no End Time. Additionally the AttnSeq column for that row would have a NULL value indicating that the statement didn’t timeout nor was it cancelled due to a Server/Client side error.

So what is this ghost entry all about. If you manually dig through the profiler trace, you will find that that the Statement in question has a Recompile event associated with it. This is by-design. When a Stored Procedure statement encounters a Recompile event, it would have a SP: StmtStarting event associated with it but no corresponding SP: StmtCompleted event. This can lead to confusion during trace file analysis.

Here is an example illustrating the same. I have a Stored Procedure whose definition is as follows:

CREATE PROC usp_recompile
AS
SELECT * FROM tbl1 OPTION (RECOMPILE)

The Recompile hint is added to forcefully induce a Recompile for the Stored Procedure when it is executed. If you look into the profiler events captured below during the Stored Procedure execution, you will see that there is a SP:StmtStarting event followed by a SP:Recompile and a SP:StmtRecompile event. Then there is another SP:StmtStarting event indicating that the recompile operation is complete and the start of the execution of the SP statement.


Hope this helps clear up the confusion around this topic.

What can you tell me Default Trace

The default trace functionality introduced in SQL Server 2005 is still a much under appreciated feature of the product. This is somewhat like a black box trace which is analogous to a airline black box can help you in certain post-mortem analysis as a DBA. I am sure a lot of you have a host of in-house scripts that you have in-place or some monitoring/auditing tool that reports some inadvertent/unscrupulous activity on the databases that you administer. Nonetheless, it is always a good idea to be aware of the out-of-the-box features that are available that can make your job a wee bit easier.

Deepak Rangarajan (Blog), a Microsoft MVP, had blogged about the set of events which are captured by this default trace. So, I shall not attempt to duplicate his efforts here but collate a set of issues that CSS has been able to resolve using Default Traces in the past and will continue to do so in the future.

Dude: Where’s my database?
Not really a question that you want to be pondering on if you do not have any monitoring/auditing tools in place. And nor do you want to BING that search term. (Ok, if you prefer even Google it!) The default trace captures the following events: Object:Created, Object:Altered and Object:Deleted which will help you track down inadvertent deletion of databases. SQL Server Management Studio has a standard report called “Schema Changes History” report which can help you track such changes on a SQL instance in the form of a report.

Memory pressure: Where, When?
Ideally this can be tracked by Perfmon data collection and most of the SQL monitoring tools available in the market today track the Target and Total Server Memory counters for SQL instances. When you monitor the delta changes for these counters, you can track the amount of fluctuations that are occurring. The default trace tracks these changes using the Server Memory Change profiler event which will help you decide if there is a large fluctuation in Max Server Memory configuration for the SQL instance. This event gets raised when SQL Server memory usage has increased or decreased by either 1 megabyte (MB) or 5 percent of the maximum server memory (Buffer Pool only), whichever is greater. This is quite useful when tracking memory pressure being experienced for a SQL instance due to factors external to the SQL instance.

Mirrored Database: When did your state change?
All database mirroring state changes for all your mirrored databases are also monitored using the Default Trace using the event: Database mirroring status change. This helps track all database mirroring state changes without having to parse the SQL Errorlogs for the same.

OMG: Someone’s mucking around with my database security?
We have handled multiple issues in the past where we needed to identify various security related audit activity on a SQL instance like new Logins/Users being added, mostly for post-mortem analysis. The default trace “Security Audit” event classes show their usefulness by letting you trace such kind of activity using the default trace.

Full-Text: What are you upto?
The default traces also help trace Full-Text crawl activity which at times have been known to cause performance degradation when very large FT catalogs are involved.

Database: Did you just grow or shrink?
SQL Server databases enabled for Autogrow help prevent the database from going down if the file becomes full but at the same time Autogrow events can cause performance issues like blocking. Additionally, database auto shrink (both log and data files) operations can severely impact database performance. With the help of the default traces, you can can all Auto Grow/Shrink operations for your databases on the instance.

SQL Performance: Now how can I use the default trace for this?
Well the answer is not a definitive one but the default trace can give you an indication if you have a baseline established. The default trace traces the following events: Hash Warning, Missing Column Statistics, Missing Join Predicate and Sort Warning. These events can be used to find out if there is an excessive amount of sorting or hashing that is occurring on your SQL instance (without a baseline, this data is moot point though). You can also identify if a number of your queries are suffering from missing statistics and missing join predicates.

One thing to note here is that the default traces rollover which means that if the default traces are not copied over to an alternate location, they will be overwritten and valuable information required for post-mortem information will be lost.

Profiler events for different scenarios

A few moons back I had blogged about the high frequency events in SQL Server. In this post, I shall talk about the common scenarios where profiler traces are collected for SQL Performance issues and what kind of events need to be captured in the server side traces that are configured for the data collection.

While configuring a profiler trace, always include all data columns for that event as that doesn’t have an overhead as much as the number of events being captured during the trace capture.

In this post, I shall cover two of the most common issues that CSS collects profiler data for addressing SQL Performance issues: Attentions/Timeouts and High CPU usage/Long Running queries.

Attentions or Timeouts

Attentions or Timeouts can occur due to client side application timeout setting (mostly this is the case) or due to database engine side issue (like failure to acquire memory, problem on the server side connectivity layer etc.). During this time, you will have a lot of queries starting but not completing successfully. If you are dealing with such a scenario, then you would need to capture the Starting events using a profiler trace to find out which statements didn’t complete and encountered the Attention event.

The events that need to be captured are:

All Database Events

Log File Auto Shrink
Data File Auto Shrink
Log File Auto Grow
Data File Auto Grow

All Errors and Warnings

Attention (Important for tracking the timeouts)
ErrorLog
EventLog
Exception
Hash Warning
Execution Warnings
Sort Warnings
Missing Column Statistics
Missing Join Predicate
Exchange Spill Event
Blocked process report
User Error Message
Background Job Error
Bitmap Warning
Database Suspect Data Page
CPU threshold exceeded

Lock:Deadlock Chain and Lock:Timeout (timeout > 0)

Performance: Auto Stats

Showplan All or Showplan XML (As execution plan will not be available for queries which didn’t complete)

Showplan Statistics Profile or Showplan XML Statistics Profile (For comparing estimated and actual query plan)

Security Audit: Audit Login, Audit Login Failed and Audit Logout

Stored Procedures events:

RPC:Starting
SP:Recompile
SP:Starting
SP:Completed
SP:StmtStarting
SP:StmtCompleted
RPC:Completed

Transactions: SQLTransaction is required for tracing back the transaction if there are nested transactions). DTCTransaction is required only if DTC transactions are getting timed out.

TSQL events:

SQL:BatchCompleted
SQL:BatchStarting
SQL:StmtStarting
SQL:StmtCompleted
SQL:StmtRecompile

Cursor events: CursorRecompile and CursorImplicitConversion (Required for checking if the requested cursor is being implicitly converted or if the cursor is being frequently recompiled).

The above events should be sufficient to track down any query timeouts and the common root causes for the same.

High CPU usage/Long Running queries

Another set of issues that are commonly dealt with while troubleshooting SQL Performance issues are Long Running Queries or Queries causing high CPU usage on the server. In such a case, the above set of events would be definitely be useful. If you are certain that the profiler trace can be captured for the entire duration of the query execution, then for highly transactional servers, you can omit the capture of the following events:

SQL: BatchStarting
SQL: StmtStarting
SP: StmtStarting
SP: Starting
RPC: Starting

The above logic of configuring a profiler trace will also help you capture trace data when you are trying to track down queries which are causing excessive amount of IO on the SQL instance.

Reference for capturing blocking information on a SQL instance: SQL 2000 Blocker Script output/SQL 2005 PerfStats

Keep in mind that the profiler data captured may not be sufficient for root cause analysis if you are not capturing SQL blocking information and performance monitor data in conjunction with the profiler traces.

In case you need additional events like deadlock events or lock events, then refer to my previous post and find out if they fall in the high frequency event category and when to capture the particular event.

TIP: As much as possible, avoid adding Text filters to your profiler trace configuration as it can lead to high CPU usage for highly active OLTP environments during filter evaluation.

Hope that the above information will help you reduce the excessive amount of data collection for troubleshooting SQL performance issues.

Profiler: Why do you collect so much data?

This has been always been a classic Catch-22. Should I include that event? But that will bloat my profiler trace size very quickly!! And then suddenly, either your gut feeling takes over and you take a split second decision or you make the same decision again based on your SQL knowledge (+gut feeling) to include or not include that event. The decision is always between collecting too much data at the cost of degrading server performance further or collecting too less data that you would require another round of data collection to figure out the root cause of the performance issue that you are troubleshooting.

At the outset, let me make it clear that I am not *perfect* at configuring a profiler trace for every performance issue that you face. But I will say this that I have handled enough SQL performance issues and looked at profiler traces (I actually do this to earn a living Winking smile)  to help outline a set of DOs and DON’Ts for capturing profiler traces for diagnosing performance issues.

In this post, I shall outline some Profiler event categories and events which generate a plethora of noise more than anything else. These events are required for troubleshooting some very specific scenarios (which is why they were introduced) and can be done away with when you are capturing data for evaluating general server performance or looking to identify the resource consuming queries on your instance.

High frequency event categories

  • Broker – None of the events in the Broker Category are required unless you are troubleshooting an issue related to Database Mail or Service Broker in SQL Server 2005 or above. However, the Broker event category can generate a lot of noise if you have Service Broker/Database Mail configured on the server and are using it heavily.
  • Cursors – If the client application or provider that connects to your SQL Server instance uses Server Side cursors, then this event category can basically lead to an unmanageable amount of data collected which will take you ages to sift through. The sp_cursor* calls will be captured either ways in your Stored Procedure event classes which makes it moot point to track Cursor: Open, Close, Execute through this event category for general performance issues. The only useful events in this event category are CursorImplicitConversion (which lets you track Implicit Conversion of requested non-supported cursor type by the SQL engine) and CursorRecompile (which helps you track down T-SQL cursor recompiles due to schema changes).
  • Locks – Now this event category is a whale if you want my frank opinion. Lock:Acquired and Lock:Released event classes (if captured), can make your data analysis more difficult than scaling Mt. Everest! If you need to track the number of locks for each session, then it is done best outside the profiler using DMVs like sys.dm_tran_locks. However, this event category has some useful event classes like:
    1. Lock: Deadlock and Lock: Deadlock Chain – Helps a lot when troubleshooting deadlock issues
    2. Lock: Timeout and Lock: Timeout (timeout > 0) – Helps troubleshooting timeout related issues due to lock blocking.
    3. Lock: Escalation – This one is debatable. Helps track down Lock Escalations but on servers where there are high number of Lock Escalations, this can become a high frequency event.
  • OLEDB – Unless you know based on the symptoms seen regarding the issue that OLEDB calls need to be traced, you shouldn’t be collecting any event from this Event category except for OLEDB Errors. So if your OLEDB provider was returning a large number of errors, you would be able to track it down using the HRESULT obtained from this event class.
  • Query Notifications – Again the same logic mentioned above for Broker event category applies to Query Notifications event category too.
  • Scans – Now this might be useful when you are doing a repro of sorts on a test or development environment but on a production server this is a strict NO-NO! You really should be able to figure out looking at the plans whether there was a table/index scan without having to capture a separate noisy event in the profiler traces.
  • Security Audit – A very good event category when troubleshooting security or permissions related issues on a SQL instance. For Performance related issues, this is just plain *noise*! Because the events under this category are fired nineteen-to-the-dozen on a SQL instance and this would just bloat your profiler trace size rather than doing anything useful! The two really and I mean really useful events in this category are Audit: Login and Audit: Logout which help track the session’s connection settings and other attributes like host name, user name etc.
  • Transactions – This event category also has a lot of noise events which would aid in bloating profiler trace size rather than doing anything useful. Especially the Transaction Manager (TM:*) event classes are not to be captured unless you are troubleshooting an issue Begin/Commit/Rollback taking a long time to complete. The SQLTransation event is quite useful for troubleshooting Deadlock related issues as it helps track transaction begin and commit/rollback and nest levels for a particular session. The DTCTransaction event class is useful for troubleshooting DTC Transaction related issues and tracking the different states of a DTC transaction.
  • Performance Event Category – This is one of the most widely used event categories in CSS for troubleshooting query performance  issues. The reason for that is this event category helps you capture Query Plans. There are a bunch of different event classes in this category which helps you capture query plans which I shall divide into two classes based on data to be obtained from these events:
    1. Compile time details: Showplan All, Showplan XML & Showplan Text (occurs during query execution but doesn’t contain run-time details like rows returned) and Showplan XML For Query Compile & Showplan All For Query Compile (show you the compile time query plan). This event can be very useful when you want to capture a query plan for timeout related issues as the other events which show you the execution time query plans may not be generated when you are dealing with query timeouts. So if you are not facing any timeouts and need the query plans with run-time details, you need not capture any of the events mentioned above. The Query Compile event classes (especially the XML event) are required when you trying to nail down compilation related issues and want to find out the resources (CPU/Memory) consumed during query compilation.
    2. Run-time details: Showplan Statistics Profile and Showplan XML Statistics Profile show you the the query plan with run-time details in text and XML formats respectively. Based on what you like sifting through Text or XML, you could capture either one. XML events are not the best when it comes to toning down the size of the profiler traces captured.

    There are some other high frequency event classes which are mentioned below:

    1. SP:CacheMiss, SP:CacheInsert, SP:CacheRemove, SP:CacheHit – These events are helpful when tracking procedure cache plan caching issues but if you are not dealing with a specific issue related to Procedure Cache, then you are going to be dealing with a lot of noise in the profiler traces if these events are captured.
    2. TSQL : Prepare SQL, TSQL : Exec Prepared SQL, TSQL : Unprepare SQL – Useful for troubleshooting specific server side cursor calls but otherwise plain noise and should be avoided.

    image*TIP: Always check the “Show all Columns” option in the Profiler UI when configuring the trace as some of the event data columns capture valuable information about event which is essential to troubleshooting a performance issue like ObjectID, ObjectName etc.

    The events to be captured using SQL Profiler for common issues like High CPU usage, excessive I/O, timeouts etc. will be covered through a series of posts later.

    To summarize, the profiler can be a friendly tool when run using a Server Side trace with the right set of events being captured.
