Default Trace–Performance Issues

There are multiple events that a default trace in SQL Server 2005 and above tracks which can be significantly useful for finding out areas of improvement. The events that I will be concentrating on are:

1. Missing Column Statistics – This event class indicates that column statistics that could have been useful for the optimizer are not available due to which an incorrect cardinality estimation could occur. This can cause the optimizer to choose a less efficient query plan than expected. You will not see this event produced unless the option to auto-create statistics is turned off.

2. Missing Join Predicate – This event class indicates that a query is being executed that has no join predicate. (A join predicate is the ON search condition for a joined table in a FROM clause.) This could result in a long-running query. This event is produced only if both sides of the join return more than one row.

3. Sort Warnings – This event class indicates that sort operations do not fit into memory. This does not include sort operations involving the creation of indexes, only sort operations within a query (such as an ORDER BY clause used in a SELECT statement). The EventSubClass field in this event shows whether this was a single pass or a multiple pass. A single pass (EventSubClass = 1) is when the sort table was written to disk, only a single additional pass over the data was required to obtain sorted output. A multiple pass (EventSubClass = 2) is when the sort table was written to disk, multiple passes over the data were required to obtain sorted output. A multiple pass is an enemy of query performance.

4. Hash Warnings – This event class can be used to monitor when a hash recursion or cessation of hashing (hash bailout) has occurred during a hashing operation.  Hash recursion (EventSubClass = 0) occurs when the build input does not fit into available memory, resulting in the split of input into multiple partitions that are processed separately. Hash bailout (EventSubClass = 1) occurs when a hashing operation reaches its maximum recursion level and shifts to an alternate plan to process the remaining partitioned data. Hash bailout usually occurs because of skewed data. Another enemy of performance!

5. Server Memory Change – This event class occurs when Microsoft SQL Server memory usage has increased or decreased. You can even determine what is the current memory usage after the increase or decrease.

6. Log File Auto Grow – This event class indicates that the log file grew automatically. This event is not triggered if the log file is grown explicitly through ALTER DATABASE. Frequent log file growths are not food for performance.

7. Data File Auto Grow – This event class indicates that the data file grew automatically. This event is not triggered if the data file is grown explicitly by using the ALTER DATABASE statement.

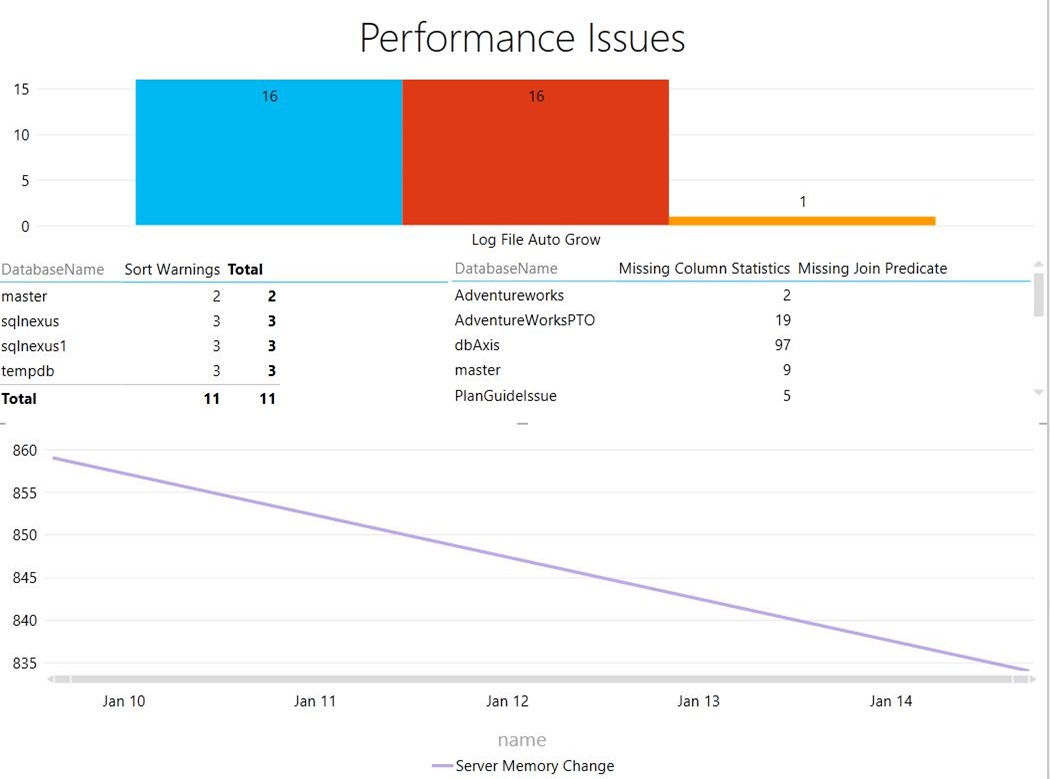

Since this information is already available in the default trace, I decided to use my Default Trace Statistics Power View Excel sheet to track this information graphically. And this is what I got (see screenshot 1)!

DefaultTrace_PerfIssues

So what is the above Excel sheet displaying?

1. The information available in the first column chart will show the Data and Log file grow events per database.

2. The first matrix in the middle of the Excel sheet shows the number of Sort Warnings and Hash Warnings with drill-down capabilities for each database to see the EventSubClass fields.

3. The second matrix shows the Missing Column Statistics and the Missing Join Predicate events for each database. The drill-down capability gives the name of the column statistics that was missing.

4. The line graph shows the change in memory for the SQL Server database engine.

Happy monitoring!

Previous posts in this series:

Schema Changes History Report

WOOT: Schema Changes History Report on Power View

The last post in this series talked about using Power View to analyze the data stored in the SQL Server’s default trace. I decided to take this a step further by creating the Schema Changes History report with the help of the data that I retrieved from the Default Traces. The advantage of a report created in Power View is that the interactivity which is missing in the standard report is available.

The way I created this report was to filter the data in the Power Pivot table using EventClass ID 46, 47 and 164 for only looking at the create, drop and alter commands which the default trace tracks. After that I created a table with a tile on the Database Name and a 100% Stacked Bar Chart to show the activity at a database level.

I also had to create linked tables for getting the Object Type and the Event Class Name that you see in the table below.

I will provide a final version of the Excel sheet once I have completed the other dashboards and sanitized the information available in the Power Pivot table.

SchemaChangesHistory

Previous Post in the Series:

Default Trace Dashboard
https://troubleshootingsql.com/2013/09/26/woot-default-trace-and-power-view/

WOOT: Default Trace and Power View

I have been working on building visualizations for various kinds of analysis that I perform for my customers. One such useful visualization was the use of Power View for analyzing the data available in the SQL Server Default Trace. The query below lets you retrieve all the information in the default traces. This same query is used to populate the Power Pivot table in the Excel file.


declare @enable int

-- Check to find out if Default Server Side traces are running
select top 1 @enable = convert(int,value_in_use) from sys.configurations where name = 'default trace enabled'

if @enable = 1 --default trace is enabled
begin

declare @d1 datetime;
declare @diff int;
declare @curr_tracefilename varchar(500);
declare @base_tracefilename varchar(500);
declare @indx int ;

select @curr_tracefilename = path from sys.traces where is_default = 1 ;

set @curr_tracefilename = reverse(@curr_tracefilename)
select @indx = PATINDEX('%\%', @curr_tracefilename)
set @curr_tracefilename = reverse(@curr_tracefilename)
set @base_tracefilename = LEFT( @curr_tracefilename,len(@curr_tracefilename) - @indx) + '\log.trc';

select EventCat.name as Category, EventID.name as EventName, Events.*
from ::fn_trace_gettable( @base_tracefilename, default ) Events
inner join sys.trace_events EventID
on Events.EventClass = EventID.trace_event_id
inner join sys.trace_categories EventCat
on EventID.category_id = EventCat.category_id

end

Once I have all the trace data available in my Power Pivot table, I created calculated columns for Day, Hour and Minute. Now that I have all the data readily available for me, I went about creating the main dashboard which provides a view of all the events that occurred along with a time line view. All this took me less than 5 minutes after I had finished writing the query! Pretty quick. Now I have an interactive report that I can use for performing various kinds of analysis.

The screenshot below will show that there was only one event raised for the Server event category and the actual time of occurrence is shown in the line graph. A simple mouse over on the point will give you the exact details. Now isn’t that a simple way to track down events! Smile


I will provide a final version of the Excel sheet once I have completed the other dashboards and sanitized the information available in the Power Pivot table.

What can you tell me Default Trace

The default trace functionality introduced in SQL Server 2005 is still a much under appreciated feature of the product. This is somewhat like a black box trace which is analogous to a airline black box can help you in certain post-mortem analysis as a DBA. I am sure a lot of you have a host of in-house scripts that you have in-place or some monitoring/auditing tool that reports some inadvertent/unscrupulous activity on the databases that you administer. Nonetheless, it is always a good idea to be aware of the out-of-the-box features that are available that can make your job a wee bit easier.

Deepak Rangarajan (Blog), a Microsoft MVP, had blogged about the set of events which are captured by this default trace. So, I shall not attempt to duplicate his efforts here but collate a set of issues that CSS has been able to resolve using Default Traces in the past and will continue to do so in the future.

Dude: Where’s my database?
Not really a question that you want to be pondering on if you do not have any monitoring/auditing tools in place. And nor do you want to BING that search term. (Ok, if you prefer even Google it!) The default trace captures the following events: Object:Created, Object:Altered and Object:Deleted which will help you track down inadvertent deletion of databases. SQL Server Management Studio has a standard report called “Schema Changes History” report which can help you track such changes on a SQL instance in the form of a report.

Memory pressure: Where, When?
Ideally this can be tracked by Perfmon data collection and most of the SQL monitoring tools available in the market today track the Target and Total Server Memory counters for SQL instances. When you monitor the delta changes for these counters, you can track the amount of fluctuations that are occurring. The default trace tracks these changes using the Server Memory Change profiler event which will help you decide if there is a large fluctuation in Max Server Memory configuration for the SQL instance. This event gets raised when SQL Server memory usage has increased or decreased by either 1 megabyte (MB) or 5 percent of the maximum server memory (Buffer Pool only), whichever is greater. This is quite useful when tracking memory pressure being experienced for a SQL instance due to factors external to the SQL instance.

Mirrored Database: When did your state change?
All database mirroring state changes for all your mirrored databases are also monitored using the Default Trace using the event: Database mirroring status change. This helps track all database mirroring state changes without having to parse the SQL Errorlogs for the same.

OMG: Someone’s mucking around with my database security?
We have handled multiple issues in the past where we needed to identify various security related audit activity on a SQL instance like new Logins/Users being added, mostly for post-mortem analysis. The default trace “Security Audit” event classes show their usefulness by letting you trace such kind of activity using the default trace.

Full-Text: What are you upto?
The default traces also help trace Full-Text crawl activity which at times have been known to cause performance degradation when very large FT catalogs are involved.

Database: Did you just grow or shrink?
SQL Server databases enabled for Autogrow help prevent the database from going down if the file becomes full but at the same time Autogrow events can cause performance issues like blocking. Additionally, database auto shrink (both log and data files) operations can severely impact database performance. With the help of the default traces, you can can all Auto Grow/Shrink operations for your databases on the instance.

SQL Performance: Now how can I use the default trace for this?
Well the answer is not a definitive one but the default trace can give you an indication if you have a baseline established. The default trace traces the following events: Hash Warning, Missing Column Statistics, Missing Join Predicate and Sort Warning. These events can be used to find out if there is an excessive amount of sorting or hashing that is occurring on your SQL instance (without a baseline, this data is moot point though). You can also identify if a number of your queries are suffering from missing statistics and missing join predicates.

One thing to note here is that the default traces rollover which means that if the default traces are not copied over to an alternate location, they will be overwritten and valuable information required for post-mortem information will be lost.
