Default Trace–Performance Issues

Posted on January 16, 2014 by Amit Banerjee

There are multiple events that a default trace in SQL Server 2005 and above tracks which can be significantly useful for finding out areas of improvement. The events that I will be concentrating on are:

1. Missing Column Statistics – This event class indicates that column statistics that could have been useful for the optimizer are not available due to which an incorrect cardinality estimation could occur. This can cause the optimizer to choose a less efficient query plan than expected. You will not see this event produced unless the option to auto-create statistics is turned off.

2. Missing Join Predicate – This event class indicates that a query is being executed that has no join predicate. (A join predicate is the ON search condition for a joined table in a FROM clause.) This could result in a long-running query. This event is produced only if both sides of the join return more than one row.

3. Sort Warnings – This event class indicates that sort operations do not fit into memory. This does not include sort operations involving the creation of indexes, only sort operations within a query (such as an ORDER BY clause used in a SELECT statement). The EventSubClass field in this event shows whether this was a single pass or a multiple pass. A single pass (EventSubClass = 1) is when the sort table was written to disk, only a single additional pass over the data was required to obtain sorted output. A multiple pass (EventSubClass = 2) is when the sort table was written to disk, multiple passes over the data were required to obtain sorted output. A multiple pass is an enemy of query performance.

4. Hash Warnings – This event class can be used to monitor when a hash recursion or cessation of hashing (hash bailout) has occurred during a hashing operation. Hash recursion (EventSubClass = 0) occurs when the build input does not fit into available memory, resulting in the split of input into multiple partitions that are processed separately. Hash bailout (EventSubClass = 1) occurs when a hashing operation reaches its maximum recursion level and shifts to an alternate plan to process the remaining partitioned data. Hash bailout usually occurs because of skewed data. Another enemy of performance!

5. Server Memory Change – This event class occurs when Microsoft SQL Server memory usage has increased or decreased. You can even determine what is the current memory usage after the increase or decrease.

6. Log File Auto Grow – This event class indicates that the log file grew automatically. This event is not triggered if the log file is grown explicitly through ALTER DATABASE. Frequent log file growths are not food for performance.

7. Data File Auto Grow – This event class indicates that the data file grew automatically. This event is not triggered if the data file is grown explicitly by using the ALTER DATABASE statement.

Since this information is already available in the default trace, I decided to use my Default Trace Statistics Power View Excel sheet to track this information graphically. And this is what I got (see screenshot 1)!

So what is the above Excel sheet displaying?

1. The information available in the first column chart will show the Data and Log file grow events per database.

2. The first matrix in the middle of the Excel sheet shows the number of Sort Warnings and Hash Warnings with drill-down capabilities for each database to see the EventSubClass fields.

3. The second matrix shows the Missing Column Statistics and the Missing Join Predicate events for each database. The drill-down capability gives the name of the column statistics that was missing.

4. The line graph shows the change in memory for the SQL Server database engine.

Happy monitoring!

Previous posts in this series:

Schema Changes History Report

Report Server Analytics with PowerPivot

Posted on July 7, 2013 by Amit Banerjee

I recently needed to query report execution statistics for a SQL Server Reporting Services instance where the number of rows were quite large. So I decided to use Excel 2013 and PowerPivot to analyze the data. This would allow me to directly pull all of the data into an Excel sheet and then perform analysis on the extracted data without having to query the Report Server database repeatedly.

The first thing to do is to create a connection to your Report Server database table. That can be done using the PowerPivot tab in Excel 2013. Click on the Manage button (Screenshot 1).

Once you are PowerPivot window, you will need to establish a connection with your Report Server database. This can be done using the From Database drop-down list with the From SQL Server option (Screenshot 2).

Create a connection to your SQL Server instance which hosts the Report Server database using the Table Import Wizard. In the Choose How to Import Data screen, select the second option i.e. Write a query that will specify the data to import. Once you click Next, provide a friendly name for the query and copy-paste the query shown below.

 select
b.Name,a.UserName,
CASE(a.RequestType)
WHEN 0 THEN 'Interactive'
WHEN 1 THEN 'Subscription'
WHEN 2 THEN 'Refresh Cache'
ELSE 'Unknown'
END AS RequestType,
a.Format, a.InstanceName,
CASE(a.ReportAction)
WHEN 1 THEN 'Render'
WHEN 2 THEN 'BookmarkNavigation'
WHEN 3 THEN 'DocumentMapNavigation'
WHEN 4 THEN 'DrillThrough'
WHEN 5 THEN 'FindString'
WHEN 6 THEN 'GetDocumentMap'
WHEN 7 THEN 'Toggle'
WHEN 8 THEN 'Sort'
WHEN 9 THEN 'Execute'
WHEN 10 THEN 'RenderEdit'
ELSE 'Unknown'
END AS ItemAction,
a.TimeStart,a.TimeEnd,a.TimeDataRetrieval,a.TimeProcessing,a.TimeRendering,a.[Status],a.ByteCount,a.[RowCount]
from dbo.ExecutionLogStorage a
inner join dbo.[Catalog] b
on a.ReportID = b.ItemID

Now data obtained from the query will be imported into the PowerPivot table. Now I create a new PowerView sheet in the Excel workbook. Add a new column to add the TimeDataRetrieval, TimeProcessing and TimeRendering columns so that the total report duration is available at a single glance.

Now save the PowerPivot data and add a new PowerView Excel sheet called “Execution Stats”. This would allow you to create a view as shown in Screenshot 3.

Leverage PowerView’s interactive capabilities to view the Report execution statistics, the report processed status (failure or success) and the processing, rendering and data retrieval times for each report.

I have uploaded the file to SkyDrive which would allow you to connect to your own Reporting Services database and use the same report format for analysis. Stay tuned for additional PowerView sheets to give you various slicing and dicing options on report execution statistics.

Excel File Download Link: http://sdrv.ms/17ZmbK0 (Filename: SSRS_Exec_Stats.xlsx) Works with Excel 2013 only.

Twitter Hashtag analysis using Excel 2013

Posted on March 12, 2013 by Amit Banerjee

Recently I had written a blog post on my non-SQL Server blog on an event that was being organized world wide to raise awareness to help end violence against women. As with today’s events, the social media was used to garner support and spread the word. There was even a live twitter feed that was running for the #RingTheBell hashtag!

The campaign’s name is Bell Bajao, which in Hindi literally means Ring the Bell started with showing how domestic violence can be prevented by simply ringing the door bell.

The event at Delhi took place at the British council on 8th March, 2013. I used the Tweet Archivist service to start a Tweets archive so that I could do analysis of the tweets received after the event. The archive created can be downloaded as an Excel/CSV file.

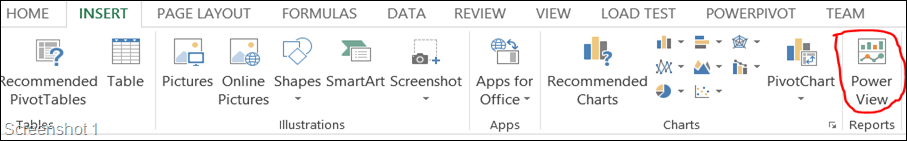

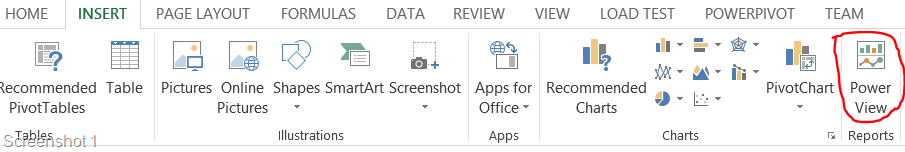

This blog post is to show how the Power View option in Excel 2013 can be utilized for performing analysis of Tweets. Once I had the tweets exported to an Excel file, I used the Power View report option to create a new Power View report. See screenshot below.

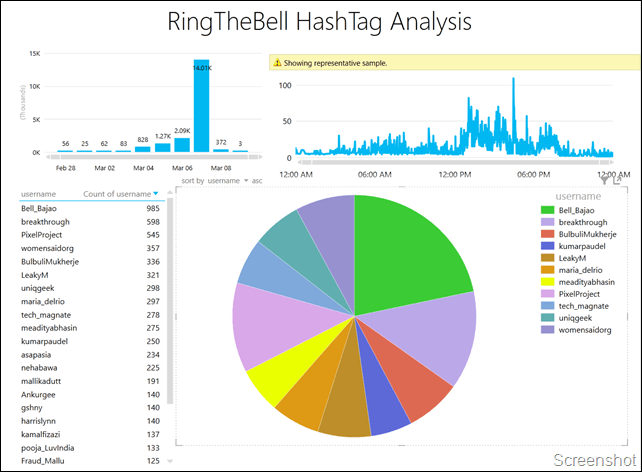

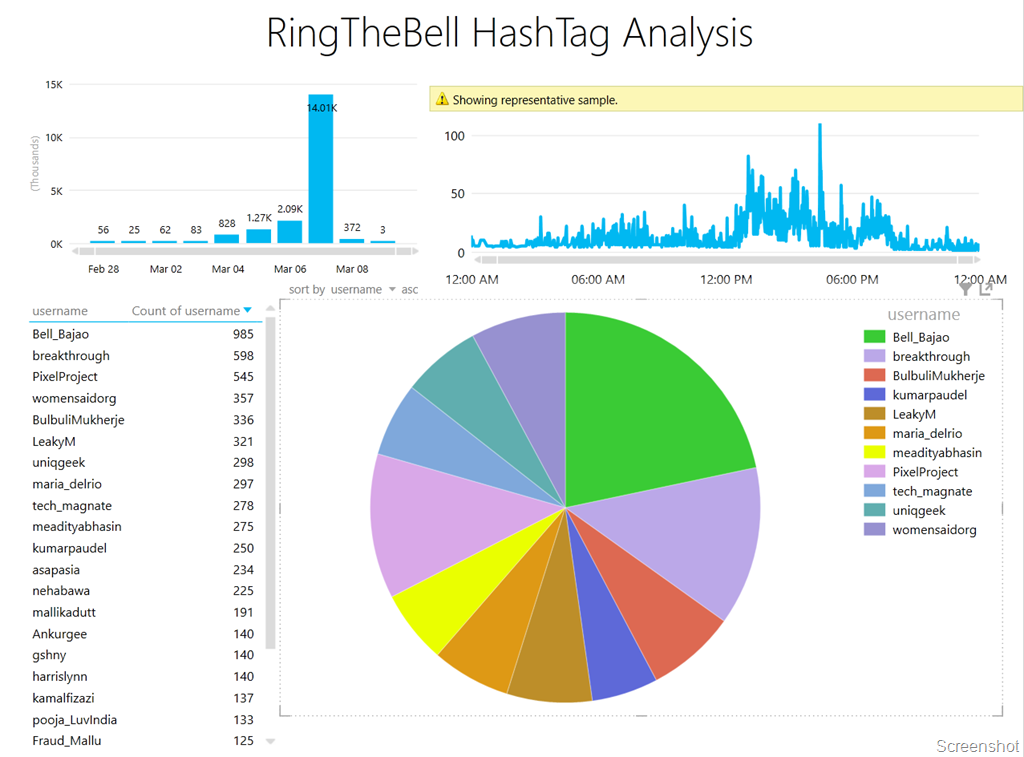

I added a bar chart, a table, a line chart and a pie chart to create a dashboard of sorts in the design area with the following properties:

1. The bar chart shows all the tweets between 28th February, 2103 to 9th March, 2013
2. The line chart shows the tweets from 6th-7th March, 2013 with a 24-hour period
3. The table shows all the users who have tweeted using this hashtag and with a tweet count of over 100.
4. The pie chart shows the percentage of tweets by each user for the period being analyzer with a tweet count over 250.

As it is clear from the above, information present in each of the four components have a different set of filters applied to them.

What makes it interesting is that the above report has interactivity built into it. So if I click on any one of the charts or table, the rest of the table/charts also change to reflect the data for the selection made. This is evident from the video at the bottom of this post.

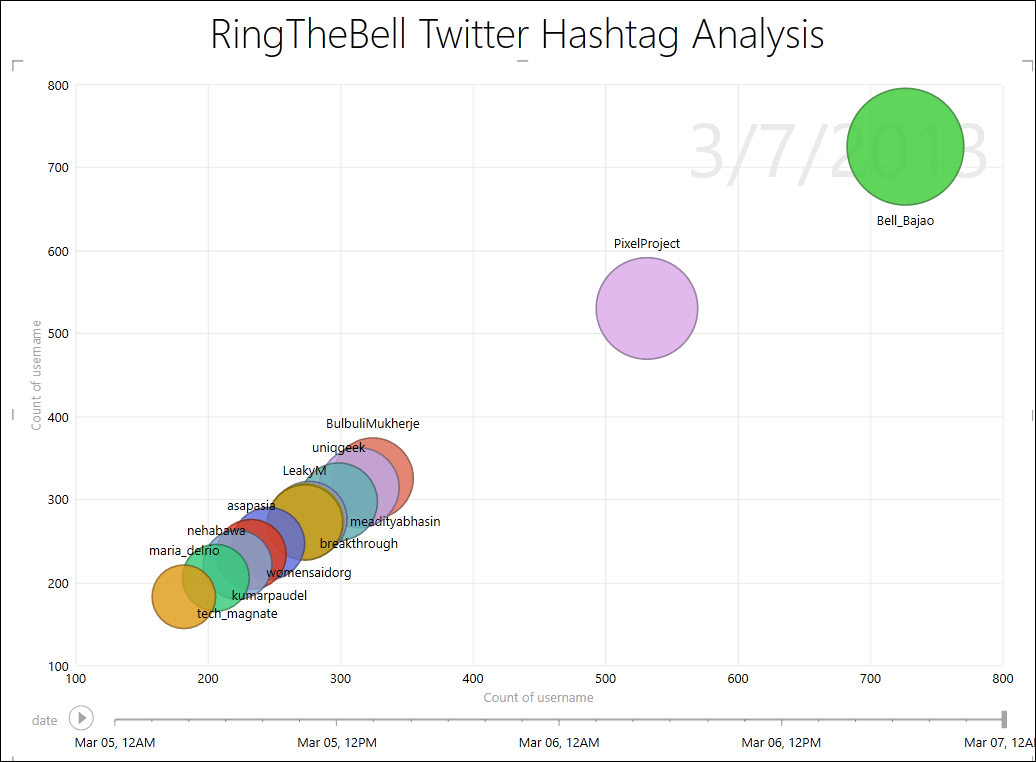

I wanted to take this a bit further, so I created a scatter graph with the Date column as the Play axis. The graph below shows me all twitter handles that have over 150 tweets over a period of three days! This allows me to see how the Twitter accounts were sharing updates/tweets prior to the event and during the event.

The video below shows the interactivity features of the Power View report in Excel. What you can do with such rich visualizations are endless. Just by looking at certain visual representations, it is easy to draw interesting conclusions. For example, the timeline shows me that the Bell_Bajao and PixelProject twitter handles were extremely active on the day of the event. There were others who were more silent in the days running upto the event and then started live tweeting/re-tweeting throughout the event. The TOP 5 contributors on the day of the event had a major pie of the tweets that were shared on 7th March. Within a very short time, I was able to decipher trends which would have taken me a while to dig out using traditional analysis methods!

*Note that the above times are based on the US timezone (Pacific time), which is why the 8th March event activity shows up as 7th March on the timeline.

I do know of a lot of individuals who use Twitter raw data for trend analysis. So here is a quick way to get that done with Power View and Excel 2013!
