SQL on Azure VM BPCheck

After a long hiatus, I am back on the blogosphere and have decided to dedicate a series to running Best Practices checks using PowerShell on Azure virtual machines running in the new deployment model: ARM (Azure Resource Manager). If you have worked on the classic deployment model, then you will need to unlearn a few things and re-learn a little more. However, the learning curve ain’t that great. Think of Azure Resource Manager as a container for all the cloud components that make up your solution. If you had a SQL Server instance running on an Azure virtual machine, then you would be using compute, networking, storage components in Azure which would together be encapsulated in a Resource Manager group.

I had previously done a series of posts around running best practices checks on Azure Virtual Machines running SQL Server. Some of those checks are still valid today as they only dealt with the SQL Server instance. You will see components of those scripts reused. Some of the checks are way easier due to the way ARM deployments are managed in Azure and the endpoints that the Azure PowerShell 1.0 exposes.

The PowerShell scripts available on the GitHub repository are mentioned below. I will run a post on each of these scripts to explain what each of these do and what to expect as the output of each of these scripts.

  • Get-AllocationUnitCheck.ps1 – Checks if the allocation unit size for the disks attached to the VM is 64K
  • Get-DBProperties.ps1 – Checks if any database has AUTO CLOSE or AUTO SHRINK enabled
  • Get-FilesOnTemp.ps1 – Checks to see if any database files are hosted on the temporary drive
  • Get-IFI.ps1 – Checks to see if the SQL Server service account has instant file initialization security privileges
  • Get-LPIM.ps1 – Checks to see if Lock Pages in Memory privilege is granted to the SQL Server service account
  • Get-OSFilesDB.ps1 – Checks to see if database files are hosted on the OS drive
  • Get-StorageAccountBP.ps1 – Checks to see if the storage account has replication enabled
  • Get-VMSize.ps1 – Checks if the right virtual machine tier is being used
  • Temporary Drive.ps1 – Finds out the temporary drive on the virtual machine
  • Get-Backups.ps1 – Finds out if any backups are being taken to local disk

The PowerShell scripts are available on GitHub repository SqlOnAzureVM. Since these scripts are now on GitHub, please feel free to pull them and enhance them as per your needs.

Azure SQL Database Export

In one of my previous posts I had talked about creating or rather restoring a deleted database backup. There is another option in preview called the automated export which allows you to create an automated export copy of your Azure SQL Database. The Azure SQL Database Import/Export Service is a REST-based web service that runs in every Microsoft Azure data center. The service provides a free request queuing service and a free Compute service to perform imports and exports from a Microsoft Azure SQL database to Microsoft Azure binary large object (BLOB) storage. The import and export operations are not a traditional physical database backup but a logical backup of the database that uses a special BACPAC format. This logical BACPAC format lets you avoid having to use a physical format that might vary between versions of SQL Server and SQL Database. Therefore, you can use it to safely restore the database to an SQL database and also to a SQL Server database.

As you can see from the screenshot, the Configure tab in the Azure Management portal for my Azure SQL Database, megatron, has an Export Status set to None.




As usual, this is a PREVIEW feature and the above is true as of today when I am writing this post. This functionality could change in the future.

Read on to find out what happens when I change the setting to Automatic… Is is as easy as 1-2-3?

Continue reading

Geo Replication meets Azure SQL Database

Active Geo-Replication enables continuous copy of your Premium database across geographic regions worldwide or within the same region. This is akin to setting up an availability group for SQL Server 2012 and above. For this you will need the following:

  • At least two Azure SQL Database Servers will available Premium database quota. The quota available is visible under the SERVERS tab in the Azure Management Portal for SQL Databases. You can alternatively retrieve the available quota by querying the server_quotas view (also in PREVIEW).
  • One or more Azure SQL Database configured on the Premium tier.

When downgrading from a Premium service tier, you must first terminate all Active-Geo Replication relationships. You can follow the steps described in the Terminate a Continuous Copy Relationship topic to stop the replication process between the primary and the active secondary databases.

The performance level of the secondary replica should be the same or higher than the primary replica.

Setting it up

In screenshot 1, you will see that the GEO-REPLICATION tab shown for the database optimus (Yes, another transformer character!) This will be available only if you have signed up for the PREVIEW feature for the new database tiers offered for Azure SQL Database. And if you have a Premium database configured, then you can setup a replica using the ADD REPLICA button which will be available at the bottom of the page.

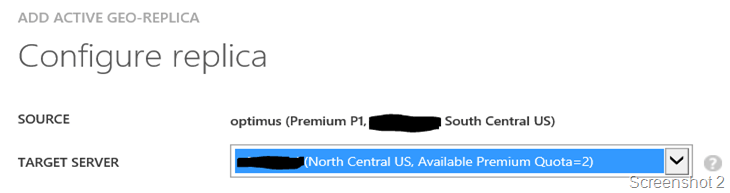

On clicking the ADD REPLICA button, you will be provided with an ADD ACTIVE GEO-REPLICA screen. This allows you to pick another target server which will host the replica copy of your Azure SQL Database. See Screenshot 2.


Select the target server where you want your active geo-replica created. Only servers enabled for geo-replication in the same subscription as the source with available Premium database quota are shown. Additionally, only servers enabled for the current reservation size of the source database are shown. Replicas are created with the same database name, edition, maximum size, and reservation size as the source.

In the above screenshot, you can see that I have asked Azure to create a replica of optimus in the North Central US region and I have the primary copy hosted in the South Central US region. Once you proceed with your selection, you will be asked to accept terms and conditions as Premium database hosting attracts a cost!

Once the replication is configured, the Geo Replication tab will show you the status and the configured replicas as shown in Screenshot 3.


Reference:

SQL Database Pricing Details
http://azure.microsoft.com/en-us/pricing/details/sql-database/#service-premium

Changing Database Service Tiers and Performance Levels
http://msdn.microsoft.com/library/azure/dn369872.aspx

Active Geo-Replication for Azure SQL Database
http://msdn.microsoft.com/en-us/library/azure/dn741339.aspx

Restore a deleted Azure SQL Database

There could be a need where you have to restore a database that was deleted accidentally due to malicious intent or a plain old mistake (people end up writing resumes for such mistakes) or for some other inexplicable need! This is where backups come into the picture! For the Web and Business editions, this is not an option unless you have exported the database or you had made a copy of the existing database. Note that Business and Web service tiers will be retired in 12 months from April 24, 2014.

If you have just entered the world of Azure SQL Database, then this will seem even more difficult because you do not have the traditional scheduled backup job that you can trigger. So what is possible? Read on to find out…

Windows Azure SQL Database automatically creates backups of every active database using the following schedule: Full database backup once a week, differential database backups once a day, and transaction log backups every 5 minutes. The full and differential backups are replicated across regions to ensure availability of the backups in the event of a disaster. In addition, premium database offers the ability to create secondary databases in different regions to protect against datacenter disasters.

If you have played around with the new Azure SQL Database tiers (Basic, Standard and Premium), you will notice that there is a new tab available for Deleted Databases. This tab shows you the option of restoring a database (Basic, Standard and Premium tiers only) which was recently dropped. See screenshot 1.


I had dropped the bumblebee database which was a Basic tier database on 30th June. I can choose to restore this using the RESTORE button available at the bottom of the page. In the restore settings page popup page, you will have to specify the following:

1. Database name – This cannot be same as the original database

2. The time to which you want to restore available through a slider and text boxes. This is similar to the Timeline feature which was introduced in SQL Server Management Studio.


Note that the target server name cannot be changed. You will have to restore the deleted database backup to the same server. You cannot restore a database backup across Azure SQL Database Servers using this Wizard. Cross server restores are not currently supported.

While the database is restoring, you will see the database in the Databases tab but the status will show up as “RESTORING”. This is currently a PREVIEW feature. So you will need to sign up for the new database service tier preview to explore this feature.

Note that the deleted database backup is not retained indefinitely. As of July 1st, the following retention policy applies for the backups as shown in Screenshot 3:


More about Azure SQL Databases in a future post!

Reference:

Changing Database Service Tiers and Performance Levels
http://msdn.microsoft.com/library/azure/dn369872.aspx

Azure SQL Database Backup and Restore
http://msdn.microsoft.com/en-us/library/azure/jj650016.aspx

Management Portal for Azure SQL Database

The Azure SQL Database provides multiple options to connect to the database. The Management Portal being one of them. In my last post, I had talked about what options the Object Explorer offers you for an Azure SQL Database.

Connecting using the Management Portal

The simplest way to connect to an Azure SQL database is to use the management portal. The management portal link will be https://&lt;servername>.database.windows.net/?langid=en-us#$database=<database name> for any Azure SQL Database. When you log onto the management portal, you will need to provide the details shown below in Screenshot 1. If you have multiple Azure SQL databases hosted on the same server, then it is recommended that you provide the database name as the USE command is prohibited for switching database connections.


Continue reading

Object Explorer: Say Hello to Azure SQL Database

In my last post, I had talked about tackling the great Azure firewall and allowing your connections through to the Azure SQL Database. Now let’s talk about what you can actually do with SQL Server Management Studio and the Azure SQL Database. SQL Server Management Studio is pretty much the tool that regular users of SQL Server are familiar with. It would make sense to be able to manage your Azure SQL Database using Management Studio!

Since there are feature limitations in the Azure SQL Database, you will not get the full range of functionality when you connect to an Azure SQL Database. Before you attempt to connect to an Azure SQL Database, ensure that you have allowed access to the server.

Connecting to the Server

imageIn the Connect to Server dialog box (Screenshot 1), you will need to provide the server name and the SQL Authenticated user name. Remember to switch to the Connection Properties tab and add your database name. If you have more than one database hosted on the server, it is imperative that you provide a database name. The USE statement is not supported on an Azure SQL Database for switching connections.

Note that an Azure SQL Database only accepts TCP connections.

What will you see

imageIn the Management Studio Object Explorer, you will get a stripped down view of the server as compared to an on-premise SQL Server instance. Screenshot 2 shows view that you will get in Object Explorer. I see the master database and the database that I connected to (megatron) … Yes I am fan of the Transformers franchise! Interestingly, you will also see an Extended Events node within the database tree.

If you have enabled Federation, then you will see the federation information for your Azure SQL Database under the Federation folder. You can launch a new query window by selecting the database to execute your queries. This part is exactly similar to how you would run queries against an on-premise database from a Management Studio Query Window.

The objects that you see in Screenshot 2 are the only ones that you are allowed to create in an Azure SQL Database. You would have noticed that a SQL Agent is missing. If you want a SQL Agent in Azure, then you could leverage a SQL Server installation on an Azure Virtual Machine or an on-premise SQL Agent which connects to an Azure SQL Database or use Azure automation.

You do have the option of performing a right-click on any of the folders like Tables, Views etc. and selecting the NEW option to get a template script for creating a table, view etc. for the Azure SQL Database.

If you are using the Premium database feature (currently in PREVIEW), then you have the option of querying the server_quotas view (currently in PREVIEW) to understand the premium database quota available on this server.

More about the Azure SQL Database in future posts!

Reference:

Azure SQL Database General Guidelines and Limitations
http://msdn.microsoft.com/en-us/library/azure/ee336245.aspx

Azure SQL Database Tools and Utilities Support
http://msdn.microsoft.com/en-us/library/azure/ee621784.aspx#ssms

SQL Server Feature Limitations (Azure SQL Database)
http://msdn.microsoft.com/en-us/library/azure/ff394115.aspx

Azure SQL Database–Firewall

In my last post, I talked about how to create an Azure SQL database. In this post, I am going to talk about how to connect to the same. You have multiple options to connect to the database:

1. Through the Management Portal using the link: https://<Azure SQL Database Server Name>.database.windows.net/

2. SQL Server Management tools like Management Studio, SQL Server Data Tools

3. Through programmatic means using .NET or other languages

But before you start connecting to your database, you will first need to setup the list of allowed IP Addresses. This post will talk about how to configure the firewall for your Azure SQL Database.

Continue reading
