SQL Server Backup Simulator v2 available now

SQL Server Backup Simulator is used by CSS to troubleshoot SQLVDI related issues and to identify if the SQLVDI DLL is functioning correctly. Based on the feedback received from the use of the tool and the current troubleshooting needs, we decided to do v2 release for SQL Server Backup Simulator.

The new features for the v2 release are:

  1. Log backup – Now the tool can perform log backups. The tool performs COPY_ONLY backups so that your LSN chain is not broken.
  2. Compression support – Starting from v2, the tool will allow you to take backups with compression enabled for SQL Server 2008 and higher.

The compression option drop-down list has three-options:
a. With Compression: This option will allow you to perform a backup with compression enabled even if the server default is not to use compression for backups.
b. No Compression: This option will allow you to perform a backup with compression disabled even if the server default is to use compression for backups.
c. Server Default: This option uses the server default setting (configuration setting: backup compression default) to perform the backup.


Screenshot of the v2 UI

Log Restore option is not currently available in this release. The incorporation of this feature will be evaluated while planning for the next release.

A big thank you to Sakthi [Blog | Twitter] for his assistance on the v2 release.

The latest release can be downloaded here.

Previous posts for Backup Simulator:
SQL Server Backup Simulator v1.0
SQL Server Backup Simulator v1.2

Troubleshooting that darn backup error

Backup and restore operations even though they are supposed to be a no-brainer, it can leave you wanting to tear your hair out. Considering the different elements that influence the outcome of a successful backup operation like backup media, consistency of the backup, network issues (if backing up to a UNC path), consistency of the database being backed up etc.

I shall attempt to outline a set of troubleshooting steps specifically for non-native backup/restore related errors for SQL Server databases.

Any BACKUP command that completes successfully or with errors has associated messages logged in the SQL Server Errorlog.

A successful backup from the SQL Server Errorlog:

Database backed up. Database: adventureworks, creation date(time): 2010/05/28(03:00:18), pages dumped: 17291, first LSN: 67:7733:56, last LSN: 67:7761:1, number of dump devices: 1, device information: (FILE=1, TYPE=DISK: {‘F:\adventureworks.bak’}).

You will see that the backup completion message has the database name, the number of pages that were contained in the backup, the date the backup was created and the number of devices and their type (in this case files). So you can reconstruct the sequence of backups even if your backup information history is missing from the MSDB system tables and you just have your SQL Server Errorlogs to play with. If you want to get real fancy about this, then you could spin up a nifty little Powershell or VBScript to parse through the SQL Errorlogs and provide the backup sequence to you as well.

Now, let’s look at a failed backup message from the SQL Errorlog.

Error: 18204, Severity: 16, State: 1.
BackupDiskFile::CreateMedia: Backup device ‘R:\adventureworks.bak’ failed to create.
Operating system error 3(The system cannot find the path specified.).
Error: 3041, Severity: 16, State: 1.
BACKUP failed to complete the command BACKUP DATABASE adventureworks.

You will notice above that the Operating System error code associated with the backup failure is reported in the error message. More often than not, the error message is self explanatory. If the error code doesn’t throw back an error text along with it, you can get the windows error code associated with the error code using net helpmsg <error number> from a command prompt window.

In the above case, there wasn’t any R: drive on my server. Now that I have finished stating the most obvious of troubleshooting methodologies for SQL native backups which was done to set the context for the next part of this post. The troubleshooting methodology for non-native backups.

Non-native SQL backups of databases use one of the following methods:

1. Use of APIs exposed through SQLVDI.dll to perform a VDI based backup
2. Use of VSS framework to perform a snapshot backup of the SQL Server database

Note: In this post, I shall not be addressing any storage level backup solutions that have options or features to handles SQL database backups.

This post is aimed at discussing the tackling of VSS/VDI related errors that you face while performing a database backup.

If a VDI backup fails, then you can try the following sequence of troubleshooting steps:

1. Attempt a backup to the same location using native SQL backup from a query window or SQLCMD. This might not always be possible as some of the backup tools do not allow any other backup application to connect to the backup share apart from the backup tool’s agents.
2. The next thing that you can do is to ensure that your SQLVDI.DLL is updated to the latest build. For this you can use the SQL Server Backup Simulator available on Code Gallery using the “Validate VDI Installation” option in the tool. This check in the tool will perform basic checks like current DLL version and additional checks based on root causes of common scenarios that CSS has seen in the past for VDI backup failures. Additional information on the usage of the tool is available here.
3. Perform a backup of the database using the tool for which the backup is failing (to the same destination if possible). The parameter tweaks at this point are not available in the current version like striped backups, changes to MAXTRANSFERSIZE/BUFFER COUNT etc. but if the backup from this tool is successful, then you know for a fact that the SQLVDI APIs are working as expected. Then it is either an additional piece of logic in the backup software that is failing or there is an external factors like network/backup media or there is a resource crunch on the SQL instance on which the database resides.

Common errors that you might see during a VDI backup operation failure:

Error message 1
BackupVirtualDeviceFile::ClearError: failure on backup device ‘VDI_ DeviceID ‘. Operating system error 995(The I/O operation has
been aborted because of either a thread exit or an application request.).

Error message 2
Error: 18210, Severity: 16, State: 1.
BackupMedium::ReportIoError: write failure on backup device ‘VDI_ DeviceID ‘. Operating system error 995(The I/O operation has been aborted because of either a thread exit or an application request.)

Error message 3
Error: 18210, Severity: 16, State: 1.
BackupVirtualDeviceFile::RequestDurableMedia: Flush failure on backup device ‘VDI_ DeviceID. Operating system error 995(The I/O operation has been aborted because of either a thread exit or an application request.)

The above errors are mostly due to outdated versions of SQLVDI.DLL on SQL Server 2000 or SQL Server 2005 instances. The “Validate VDI Installation” option in the Backup Simulator should be able to identify any known issues with DLL version mismatch for you.

If you have an application that uses Volume Shadow Service to backup your SQL database and that backup fails, then you your troubleshooting steps would be a bit different. The tell-tale sign of a VSS Snapshot backup is in the I/O Frozen message being written into the SQL Errorlogs for the databases being backed up. In such a failure scenario, take a backup of the database using Windows Server Backup Admin (Windows Server 2008 and above) or NTBackup utility to perform a backup of the database files involved. If this backup is successful, it means that a snapshot backup is successfully completing for the database. Now depending on your backup application’s implementation logic, this might be a resource crunch or a backup storage media incompatibility or even a resource crunch.

Common errors associated with VSS backups:

Issue# 1
Error: 3041, Severity: 16, State: 1.
Backup      BACKUP failed to complete the command BACKUP DATABASE <database name>. Check the backup application log for detailed messages.
SubprocessMgr::EnqueueSubprocess: Limit on ‘Max worker threads’ reached.
This error message is raised when your backup application uses VSS to backup a large number of databases simultaneously. More information around this can be found in this post Volume Shadow barfs with 0x80040e14 code

Issue #2
While performing a Bare Metal backup you might run into issues if your SQL Server binaries are located on a different drive other than the C: drive. More information on the same is mentioned here: Location of SQL Binaries can flip out Bare Metal backups

Issue #3

Event Type:    Error
Event Source:    VSS
Event Category:    None
Event ID:    6005
Sqllib error: Database %1 is stored on multiple volumes, only some of which are being shadowed.

The above error occurs when you backup only one of the volumes that contains SQL database data/log files which are spread over multiple volumes. This is explained in detailed in this post: Why is VSS complaining about SQL Data files

More information on how VSS/VDI work is present in the blog post by Sudarshan: INFORMATIONAL- SHEDDING LIGHT on VSS & VDI Backups in SQL Server

Previous posts related to Volume Shadow Backups
IO Frozen messages while taking NT Backup for SQL databases

Previous posts related to VDI backups
SQL VDI backup fails with 0×80770007

Converting Restore Filelistonly command into Restore Database command

Very often I need to restore database backups for in-house reproes of issues that I am currently troubleshooting. This can be quite cumbersome if the original database had a bunch of database files. This prodded me along the direction of writing a T-SQL script to help me generate the RESTORE DATABASE command from a RESTORE FILELISTONLY output from a backup file.

-- Create the stored procedure to create the headeronly output
set nocount on go
create proc #sp_restoreheaderonly
@backuplocation varchar(max)
restore filelistonly from disk = @backuplocation
declare @backuplocation varchar(max),@filelocation varchar(255),@sql varchar(max),@dbname varchar(255)
set @backuplocation = 'C:\BackupFile.BAK' --Replace with backup file location
set @filelocation = 'C:\Program Files\Microsoft SQL Server\MSSQL10.MSSQLSERVER\MSSQL\DATA\' -- Replace with destination data folder location
set @dbname = 'RestoredDB' -- Replace with destination database name

create table #tblBackupFiles
(LogicalName varchar(255),
PhysicalName varchar(255),
Type char(1),
FileGroupName varchar(50),
Size bigint,
MaxSize bigint,
FileId int,
CreateLSN numeric(30,2),
DropLSN numeric(30,2),
UniqueId uniqueidentifier,
ReadOnlyLSN numeric(30,2),
ReadWriteLSN numeric(30,2),
BackupSizeInBytes bigint,
SourceBlockSize int,
FileGroupId int,
LogGroupGUID uniqueidentifier,
DifferentialBaseLSN numeric(30,2),
DifferentialBaseGUID uniqueidentifier,
IsReadOnly int,
IsPresent int,
TDEThumbprint varchar(10))

-- Execute above created SP to get the RESTORE FILELISTONLY output into a table

insert into #tblBackupFiles
exec #sp_restoreheaderonly @backuplocation

-- Build the T-SQL RESTORE statement
set @sql = 'RESTORE DATABASE ' + @dbname + ' FROM DISK = ''' + @backuplocation +  ''' WITH STATS = 1, '

select @sql = @sql + char(13) + ' MOVE ''' + LogicalName + ''' TO ''' + @filelocation + LogicalName + '.' + RIGHT(PhysicalName,CHARINDEX('\',PhysicalName)) + ''','
from #tblBackupFiles
where IsPresent = 1

set @sql = SUBSTRING(@sql,1,LEN(@sql)-1)

-- Get the RESTORE DATABASE command

print @sql

-- Cleanup temp objects
drop procedure #sp_restoreheaderonly;
drop table #tblBackupFiles

I created the above script which currently works on SQL Server 2008 and above. The above T-SQL script will look into the Restore Filelistonly output from a backup file and generate the Restore Database command using the Logical and Physical filenames. Another limitation of the above script is that it assumes that there is only 1 database backup in the backup file.

Is my RESTORE operation complete?

When you perform a database restore operation using Management Studio Object Explorer, you might be baffled as to why the confirmation pop-up window doesn’t pop-up saying that the database restore operation is complete.


This is because the RESTORE operation in SQL Server can be divided into two stages if you are having a high level discussion and don’t want to get into the intricacies:

1. Copy the information from the backup media and write them into the physical files on the Windows File System

2. Perform recovery on the database to bring it online (provided in the OPTIONS tab you have selected the first radio button under the Recovery State)

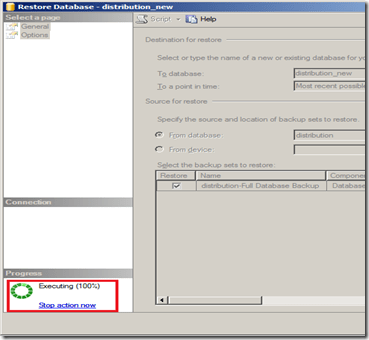

The highlighted counter shows you the progress of the first stage only. The second stage doesn’t have a progress counter associated with it. If you look at the percent_complete column value in the sys.dm_exec_requests DMV.

So, if your database restore screen is showing 100% completed status and the SQL Server Errorlog is not reporting the following for the database being restored:

2010-03-13 02:56:22.650 spid61       Starting up database ‘distribution_new’.
2010-03-13 02:56:23.140 Backup       Database was restored: Database: distribution_new, creation date(time): 2009/08/04(01:37:56), first LSN: 865:804:70, last LSN: 865:833:1, number of dump devices: 1, device information: (FILE=1, TYPE=DISK: {‘C:\Program Files\Microsoft SQL Server\MSSQL.2\MSSQL\Backup\distribution.bak’}). Informational message. No user action required.

Then you are phase 2 of the restore provided that session performing the database restore is not experiencing blocking.

Now for the most interesting part, Why is this happening i.e. the long recovery? One of the reasons is documented here.
